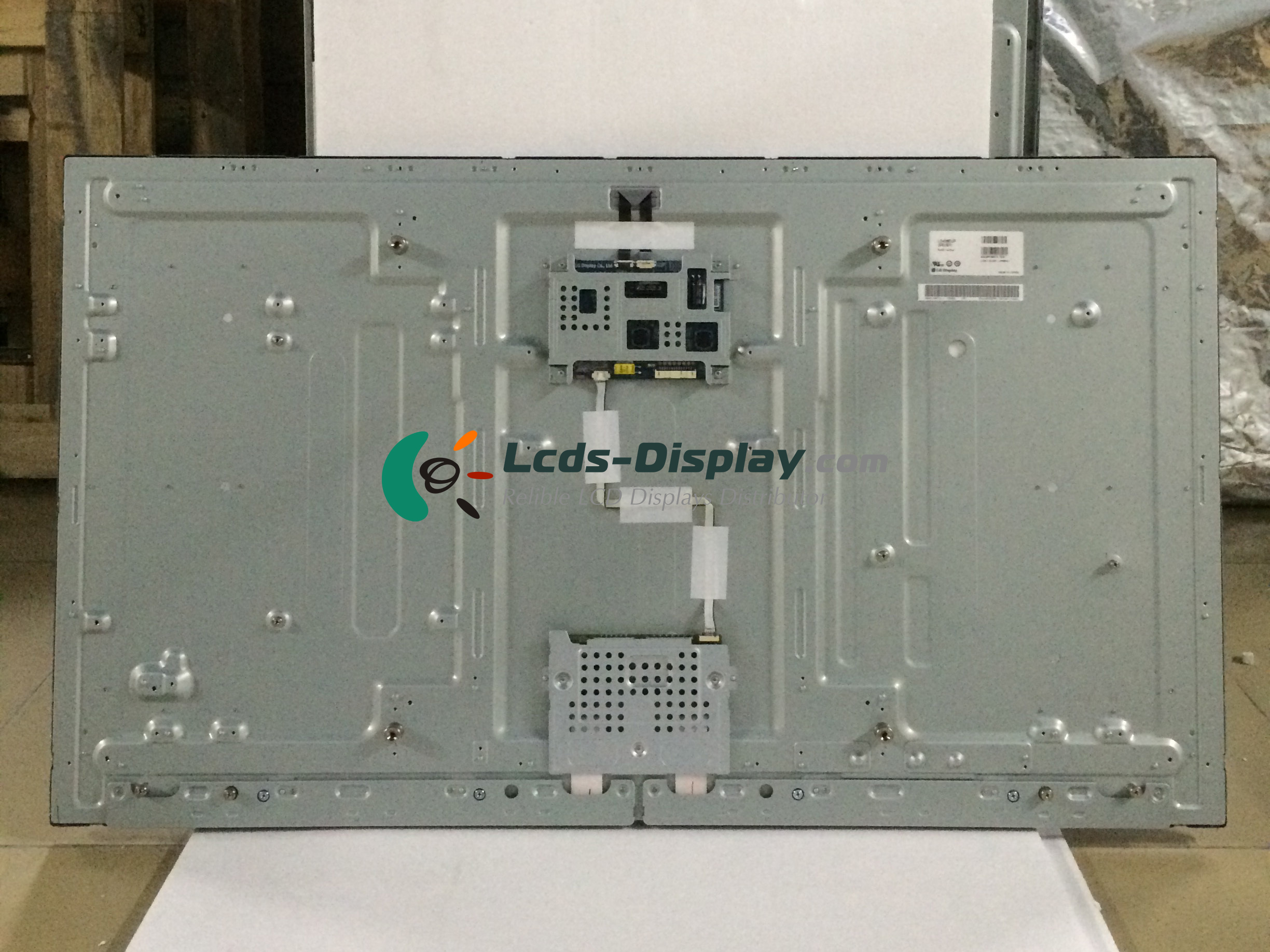

LD420EUP-SEB1
LD420EUP-SEB1 Grunnupplýsingar
| Panel Model | LD420EUP-SEB1 |
|---|---|
| Panel Vörumerki | LG Display |
| Lýsingu | a-Si TFT-LCD ,42 inch, 1920×1080 |
| Pallborðsgerð | a-Si TFT-LCD |
| LD420EUP-SEB1 Verð | Beðið um verð og leiðtíma |
| Gerð alias | LD420EUP (SE)(B1) |
| Vinnuhitastig | 0 ~ 50 °C |
| Geymslu hiti | -20 ~ 60 °C |
| Athugasemdir | Performance PD, Super narrow bezel (9.9mm) |
LD420EUP-SEB1 Vélrænni eiginleikar
| Punktarupplausn | 1920(RGB)×1080 (FHD) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 52 PPI |
| Stærðarhlutföll | 16:9 (H:V) |
| Formþáttur | Flat Rectangle Display |
| Dot Pitch | 0.1615×0.4845 mm (H×V) |
| Pixel Pitch | 0.4845×0.4845 mm (H×V) |
| Þyngd | 9.20/9.70Kgs (Typ./Max.) |
| Yfirborð | Antiglare (Haze 10%), Hard coating (3H) |
| Virk svæði | 930.24×523.26 mm (H×V) |
| Bezel Area | 938.6×531.5 mm (H×V) |
| Yfirlit vídd | 958.4×551.3 mm (H×V) |
| Yfirlit dýpt | 16.2/32.4 (Typ./Max.) mm |
| Landslag eða Portrait | Landscape / Portrait |
| Snertiskjár | Without |
LD420EUP-SEB1 Optical Features
| Skjástilling | S-IPS, Normally Black, Transmissive |
|---|---|
| Birtustig | 450 cd/m² (Typ.) |
| Andstæðahlutfall | 1300 : 1 (Typ.) (Transmissive) |
| Sýna lit. | 16.7M/1.06B (8-bit / 8-bit + Dithering) |
| Litur Gamut | 72% NTSC (CIE1931) |
| Viðbragðstími | 12 (Typ.)(G to G) |
| Skoða horn | 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) |
| Skoða stefnu | Symmetry |
| Hvítur litur Kromaticity | Wx:0.279; Wy:0.292 |
| White Variation | 1.30 (Max.)(5 points) |
| Sólskin læsileg | N |
LD420EUP-SEB1 Electronics Lögun
| Lóðrétt tíðni | 120Hz |
|---|---|
| Reverse Scan | No |
| Samtals orkunotkun | 91.5W (Typ.) |
LD420EUP-SEB1 Backlight System
| Lampapunktur | Edge light type |
|---|---|
| Lampategund | WLED |
| Lamp Life Time | 60K(Typ.) (Hours) |
| Gerð tengi | Connector |
| Lamp Driver Board | 83.2/89.5W (Typ./Max.) |
LD420EUP-SEB1 Signal Interface
| Merki Flokkur | LVDS |
|---|---|
| Merkisflokkur | LVDS (4 ch, 8/10-bit) |
| Input Voltage fyrir Panel | 12.0V (Typ.) |
| Inntakstími fyrir spjaldið | 690/900mA (Typ./Max.) |
| Panel Power Consumption | 8.3/10.8W (Typ./Max.) |
| Gerð tengi | Connector |
| Signal Interface | JAE - FI-RE51S-HF, Pitch:0.5 mm, Pin:51 pins |
